Product Overview

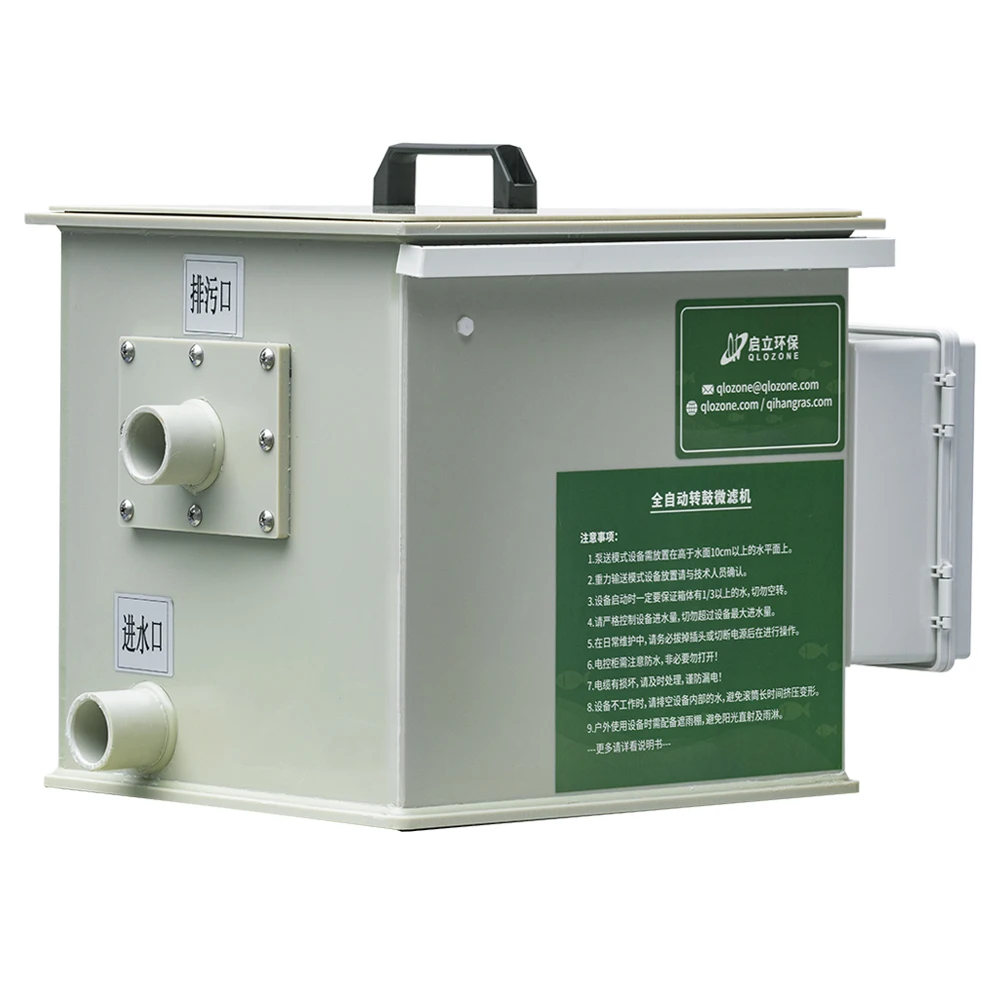

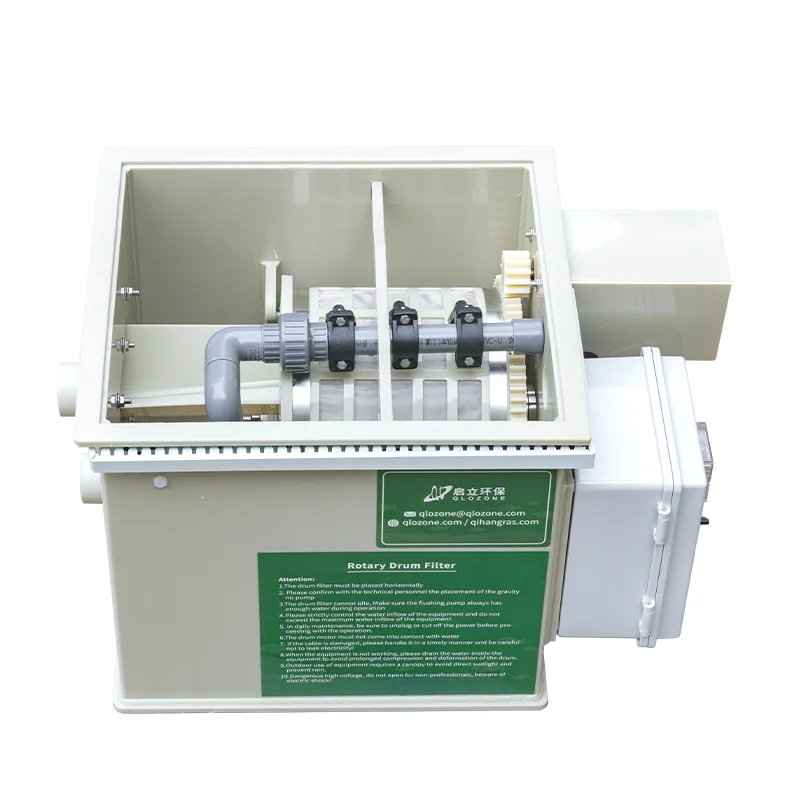

Qlozone mini aquarium fish tank drum sieve filter pp material factory price koi pond 5m3 drum filter
FEATURES AT A GLANCE
1.PP Material:Strong hardness,corrosion resistance,heat resistance,cold resistance 2.High presure sprinkler:Automatic clog detection and backwashing 3.3.75um 316L Screen drum:Remove feces,baits de-caying plant matter,dea-dinsects 4.Waterproof electric control box :housing seal,waterproof and leak-proof 5.Customizable large diameter spout:Large diameter pipe,keep large flow filtration cycle 6.Water Level Sensor:Detects drum blockage and flushes automatically.
PRODUCT SPECIFICATIONS
|
Model
|
QL-PM5
|
QL-PM10
|
QL-PM20
|
QL-PM30
|
|
Flow
|
5T/H
|
10T/H
|
15-20T/H
|
20-30T/H
|
|
Inlet
|
50mm
|
40mm*2
|
110mm
|
160mm
|
|
Outlet
|
63mm
|
50mm*2
|
110mm
|
160mm
|
|
Sewage Outlet
|
50mm
|
32mm
|
32mm
|
40mm
|
|
Size
|
430×390×370mm
|
500×400×430mm
|
565×465×566mm
|
800×600×710mm
|
|
Motor power
|
15w
|
15w
|
25w
|
40w
|
|
Backwash pump power
|
86w
|
86w
|
86w
|
750W
|

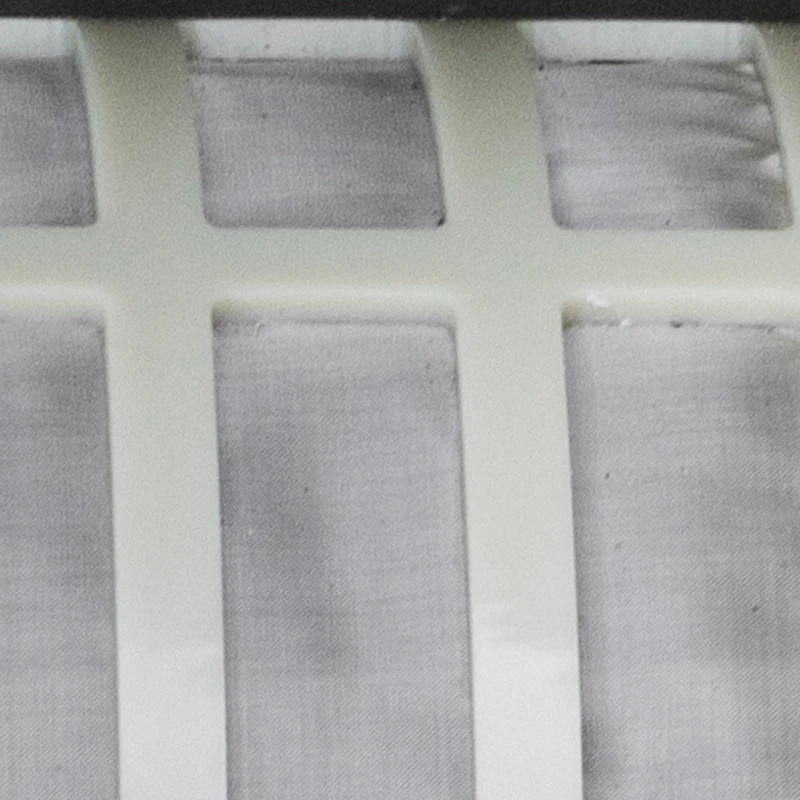

75um 316L Stainless Steel Precision Sieve Mesh
316L stainless steel screen drum that filters contaminants largelthan 75 micron impurities (e.g., fish, bait, algae, pellets,etc.) from the water stream.
HIGH PRESSURE NOZZLE
Timed high-pressure nozzle not only saves energy, butalso has stronger cleaning ability

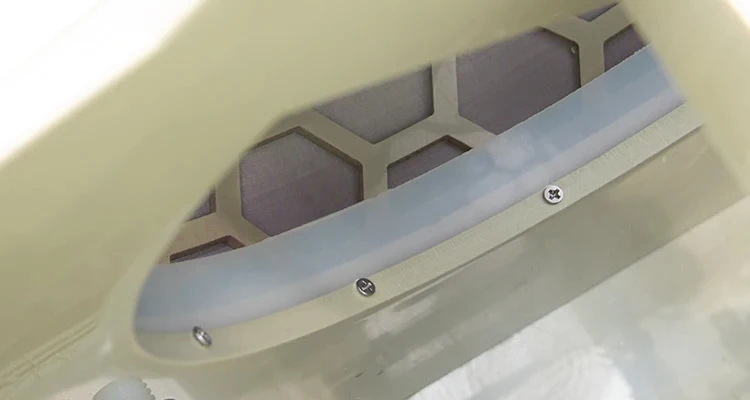

Upgraded andimproved seals
Upgraded sealing performance to effectively eliminate overflow areas

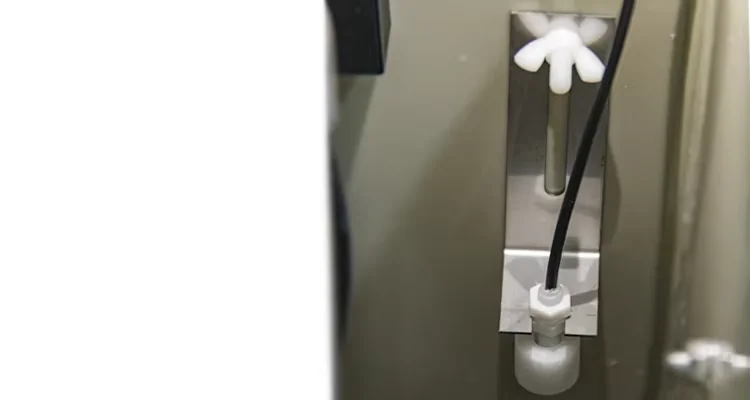

Automatically sensesclogging and flushes
Save Time – Save Effort – Save Heart As soon as a clogged cartridge is detected, thelevel sensor is activated and the
backwashprogram is carried out automatically.
backwashprogram is carried out automatically.

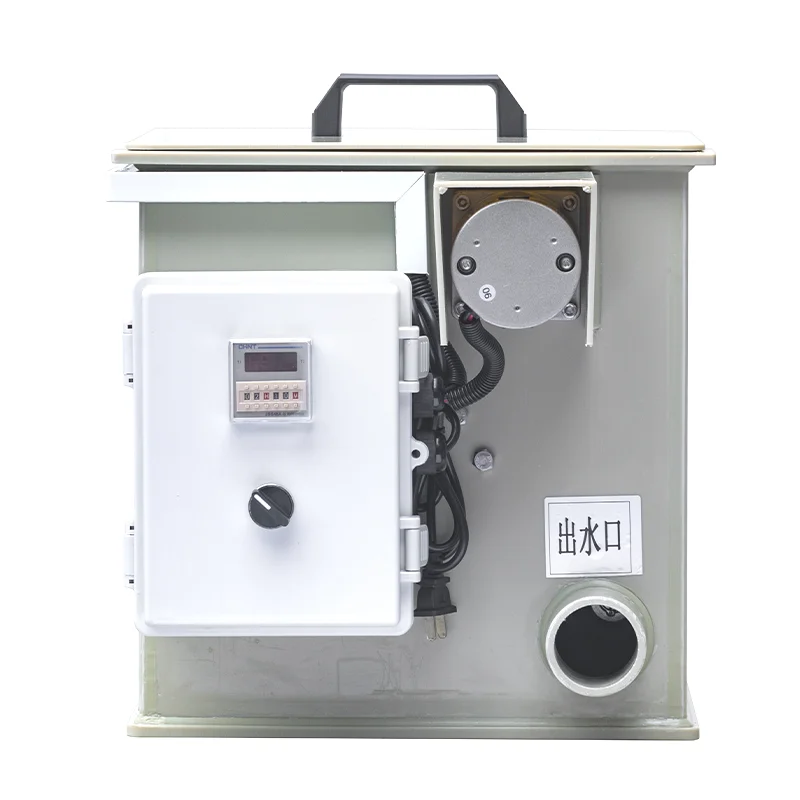

Integrated control panel box
Controlling each part through the panel box, and with microcomputertimer switch, reasonable and efficient cleaning of the fish pond.
